Efficient Condensate Management with Ball Float Steam Traps: A Smart Choice for Process Industries
In process industries, maintaining efficient steam systems is crucial for both performance and energy savings. One of the key components in this setup is the steam trap, responsible for removing condensate without allowing steam to escape. Among the various types available, ball float steam traps stand out as one of the most reliable and efficient options for heavy and continuous condensate loads — making them ideal for process equipment like heat exchangers, jacketed vessels, and reactors.
Why Choose Ball Float Steam Traps?
Ball float steam traps work on a simple yet effective principle. Inside the trap, a hollow stainless-steel ball (the float) rises and falls
with the condensate level. As condensate enters, the float lifts and opens the discharge valve, allowing the liquid to drain continuously.
When steam reaches the trap, the float drops, closing the valve and preventing steam loss. This continuous discharge keeps the equipment
running efficiently and prevents waterlogging, ensuring consistent heat transfer.
Product Quality:
Microbial contamination can alter the composition, stability, or potency of a drug. By ensuring sterility, manufacturers preserve the intended therapeutic
effectiveness of their products.
Regulatory Compliance:
Regulatory bodies such as the FDA, EMA, and WHO mandate validated sterilization processes for pharmaceutical manufacturers. Meeting these standards not only
ensures safe usage but also strengthens brand credibility.
Selecting the Right Trap
Choosing the right ball float steam trap involves more than just picking a size. Here are the key considerations:
Condensate Load: Ball float traps are designed for systems that generate heavy and continuous condensate, such as process heaters, dryers, and jacketed vessels.
Safety Factor: It’s important to include a safety margin in your sizing to account for start-up conditions, fluctuating loads, and gradual wear over time.
Material Selection: The trap body material should match the operating pressure, temperature, and environmental conditions. For instance, cast iron is suitable for moderate pressures, while stainless steel offers better resistance to corrosion and higher temperatures.
Air Venting: Modern traps are equipped with thermostatic air vents to quickly remove air during start-up, ensuring faster heating and preventing air binding — a feature seen in advanced products from manufacturers like Thermax.
Common Applications
Ball float traps are widely used across industries where continuous condensate removal is essential.
Process Equipment: Heat exchangers, reactors, jacketed vessels, and drying cylinders all rely on efficient condensate management for smooth operation.
Heating and Utility Systems: They’re equally effective in heating coils, hot water heaters, steam separators, and sterilizers, where stable temperature control is critical.
Orientation: Always install the trap with the float arm in a horizontal position to allow free float movement.
Bypass Valve: Include a bypass valve for easy maintenance, isolation during repairs, or to prevent freezing during shutdowns.
Strainer: Use a strainer before the trap to filter out debris that could block or damage internal components.
Water Hammer Protection: While modern ball float traps are more robust, it’s still best to avoid conditions that cause water hammer for longer service life.
Installation Guidelines
Trap must be installed in horizontal direction with arrow direction on nameplate pointing down inlet direction arrow in pipe end must be fitted at inlet of trap.
Periodic flushing through below down valve is recommended for smooth operation of trap.
Slow opening of isolation valve is recommended to avoid system system shock.
Blow down valve should be open at startup to avoid water hammering effect if the system was off for longer period of time.
Ensure proper flushing of line before installation of trap.

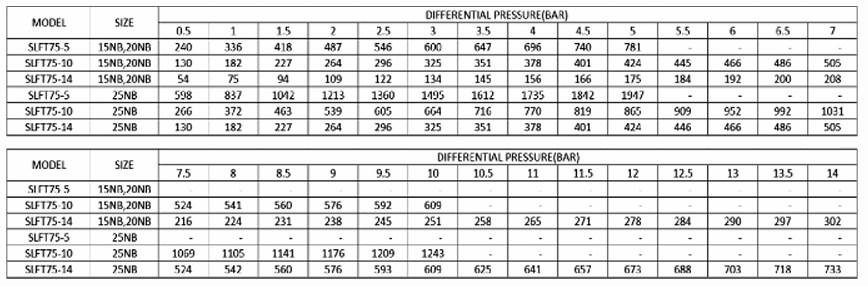

Discharge Capicity (Kg/hr)
Key Benefits
Continuous Condensate Discharge – Ensures consistent heat transfer and prevents temperature fluctuations.
High Capacity – Handles large condensate volumes efficiently, even during peak loads.
Steam and Energy Savings – Prevents steam loss, improving overall system efficiency and reducing operational costs.
In conclusion, ball float steam traps are a dependable and energy-efficient choice for process industries dealing with continuous condensate flow.
When selected and installed correctly, they ensure smooth operations, lower energy waste, and extend equipment life — aligning perfectly with Meknetics’ focus on engineering performance and reliability in every solution.
